Infrared Temperature Sensor IR501AC



• Capturing of larger measuring areas by ratio distance to measuring spot 1: 1
• Connection for air cooling and lens cleaning by compressed air
• Robust sensor for use in very hot or very dirty environments
• Very small and compact design for installation in tight space

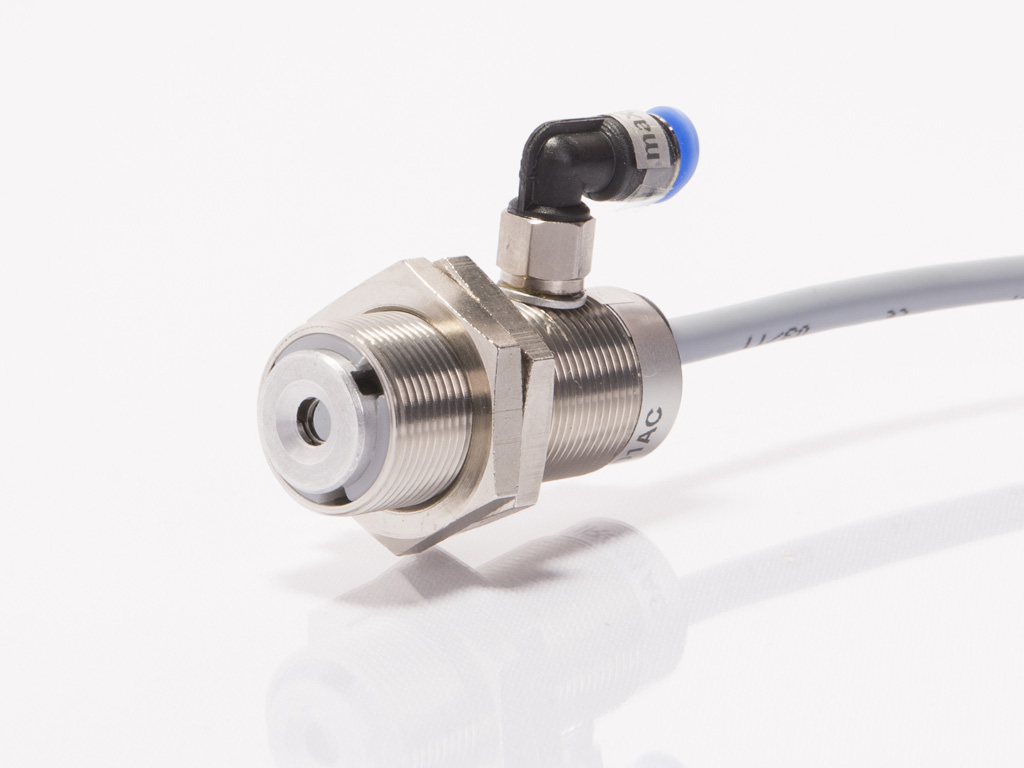

novasensSensorIR501AC

Measuring range / field of application -40°C to + 1000°C Temperature Measurement System novasens 2050
0 – 250 % Hotmelt Control System novasens 2000
Spectral range 8-14 μm
Emissivity correction 1,0 to 0,1 adjustable on Controller
Dimensions Length 43 mm x 18 mm diameter with M18 x 1 thread
Permissible ambient temperature -20°C to +170°C
Permissible moisture 95% not condensing
Distance to measuring spot 1:1 e.g 30 mm distance = 30 mm spot
Accuracy +/- 1% of reading
Repeat accuracy 0,5°C (0-100°C), 1,0°C (over 100°C)
Reaction time 40ms
Resolution 1/10°C
Outputs 0-20mA, 4-20mA, 0-10VDC selectable on Controller
Weight 180 Grams (sensing head with 3m cable including plugs, with Air Filter F110)
Protection class IP54
Delivery scope Sensing head with 3m cable including plugs and mounting screws, with air filter F110
Conformity RoHS-conformity, CE-Sign
Article number 0200208
The sensor works as a part with the complete Infrared Temperature Measurement System novasens 2050 or the Hotmelt Control System novasens 2000.

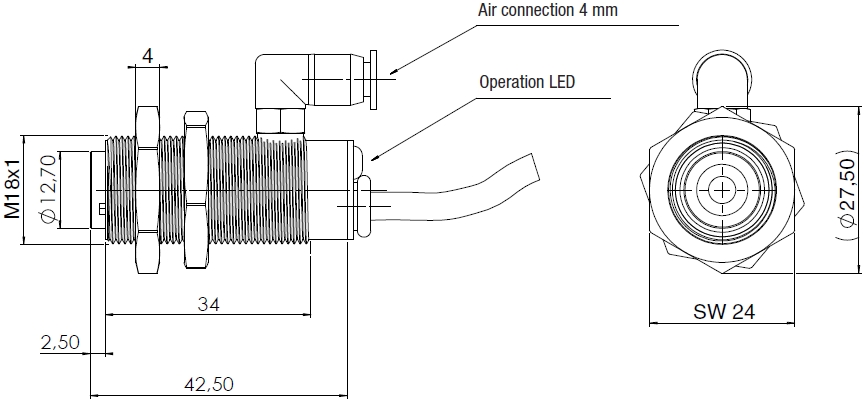

Dimensions

infraredtemperaturesensornovasensir501ac



Optical Specifications

opticalresolutionsnovasensinfraredtemperaturesensors
